Steinaker Service Canal Enclosure

This case study outlines using solid-walled HDPE pressure pipes for canal enclosures to support long-term water conservation efforts.

Context

Steinaker Service Canal is approximately 61,950 feet long and runs from the outlet works of Steinaker Reservoir about 12 miles south. It was constructed as an earthen, unlined open channel in 1961 by the U.S. Bureau of Reclamation and is operated and maintained by the Uintah Water Conservancy District (UWCD).

The canal typically carries 120 cubic feet per second (cfs) of irrigation water to users in the Ashley Valley area, delivered through 34 active turnouts.

Irrigation is one of the most demanding uses of water worldwide. A Utah geological survey has reported that about 33% (other estimates as high as 42%) of the United States water use goes toward irrigation activities such as crop production and recreational lands (1). In 2018 alone, there were about 55.9 million acres of irrigated land in the United States (2).

Surface water is the primary withdrawal source for irrigation in the United States. Canals are the preferred method of transporting this water due to their cost efficiency across long distances (3). However, the major drawback of open canals is direct contact with the surrounding environment, resulting in multiple problems such as water evaporation and seepage loss (4).

While a canal lining solution is typically adopted to limit seepage loss, it lacks control over water evaporation (5). UWCD is developing the Vernal Unit Efficiency Project (VUEP) that would enclose the entire canal in a pressurized conduit from Steinaker Reservoir to its end and offer a long-term solution to address water evaporation and seepage loss.

Opportunities

Canal enclosures have gained recognition as an effective method to help reduce water loss. By enclosing the canal with a pipe, the waterway retains all the benefits of an irrigation system while increasing savings through improved water retention.

Canal enclosures can also address public safety concerns associated with open canals in urbanized areas by improving water quality, eliminating contamination from external sources, providing redundancy for drinking water supplies, and allowing for the development of recreational projects near the enclosed canal (6–8).

Pipeline material selection is among the most critical factors that affect the performance and success of any canal enclosure project (6). Various design considerations must be addressed when selecting the appropriate pipe material, including the pipe type, load-carrying system, corrosion protection, leakage rate, and pressure requirements. Additionally, for the Steinaker Service Canal, special consideration was required to address bends along the canal.

Solution

Bowen Collins & Associates, Inc., the project’s engineers, turned to a high-density polyethylene (HDPE) piping system to enclose the canal. HDPE pipes offer corrosion resistance, flexibility, durability, and lower seismic susceptibility than other piping materials such as concrete or steel. Moreover, it provides a zero-leakage rate and low biofilm formation potential, highlighting its capability to preserve water quality while transporting it.

To support the project, AGRU America manufactured 15,500 ft of OD 2 m SDR 26 HDPE pipe and imported HDPE fittings from its parent company in Austria. Saddle spigots were adopted to create dozens of vents, drains, maintenance holes, and other support structures. Additionally, pipe elbows were used to help deal with the canal’s numerous twists and turns.

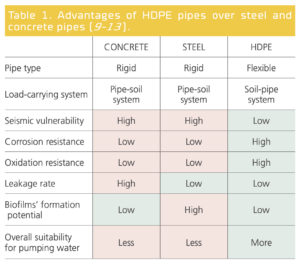

Table 1. Advantages of HDPE pipes over steel and concrete pipes (9–13).

Status

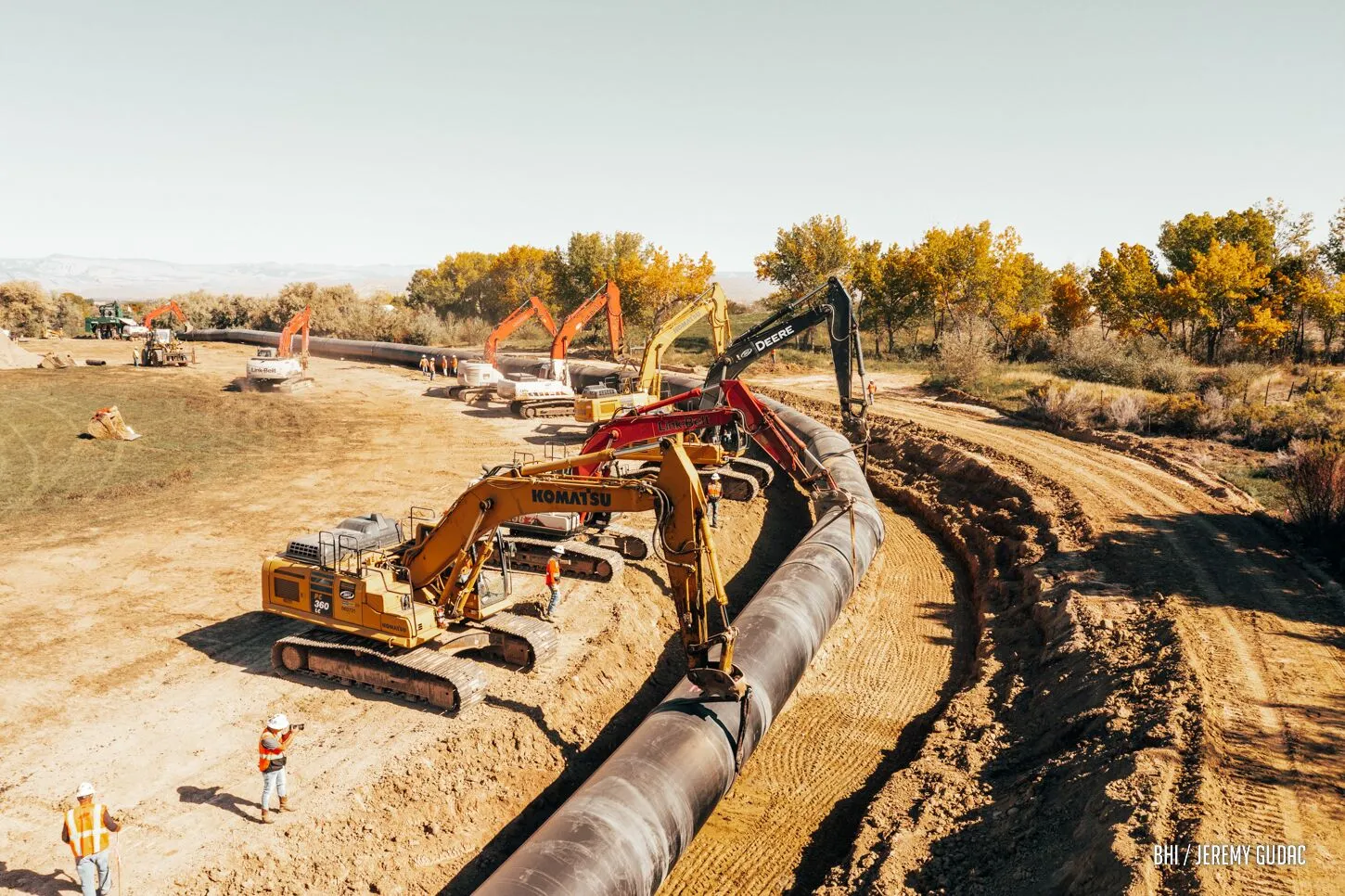

The Steinaker Service Canal project is ongoing. Because of funding limitations, UWCD is enclosing the canal in multiple phases. Reaches 2 and 3A began construction in the fall of 2022 and will be finished by the start of the irrigation season in 2023.

The District plans to enclose the remaining 30,000 LF of the canal to the dam, consisting of a 2,000 mm to 2,250 mm HDPE pipe. Reaches 2 and 3A are currently recognized as the largest diameter solid wall HDPE pipeline in U.S. history.

Contact AGRU for support on canal enclosure and irrigation projects.
