Industrial Concrete Protective Liner Applications

Concrete and reinforced concrete pipes and containments are widely used for industrial applications such as wastewater plants, nuclear power, and geothermal power (1). However, these structures are vulnerable to chemical and biological interactions (2). Concrete protective liners are effective when used with concrete structures of high strength and stiffness, providing a barrier layer against these interactions by providing corrosion and abrasion resistance, flexibility, and ductility.

The central concept herein is to prevent the interaction between the concrete surface and contained liquid media to improve the longevity of structures used in industrial processes. This article discusses industrial applications of concrete protective liners, emphasizing their efficiency and capabilities.

Industrial Concrete Protective Liner Applications: Wastewater Treatment Plants

Modern wastewater management systems include sewers, chambers, pumping stations, maintenance holes, treatment facilities, and other components. It is estimated that there are 3 million kilometers of sewers and 18,000 wastewater treatment facilities in the wastewater management system of the European Union and over 16,000 in the United States (3). These structures are typically constructed of reinforced concrete (4). Indeed, sewage concrete structures are exposed to a corrosive environment below and above wastewater level. This environment induces concrete deterioration, representing a critical issue for stakeholders and decision-makers in wastewater collection and treatment facilities (5).

A study on this issue has reported the existence of severe deterioration with a maximum depth exceeding 2 cm in concrete pretreatment tanks after just two years of service (4). In addition to the physical and chemical impacts, microbial attacks are recognized as a primary source that induces concrete degradation. This is because the metabolic activity of many bacteria produces acids that contribute to concrete deterioration (6). A summary of microbiologically induced corrosion is shown in Figure 1.

Concrete tanks and other structures in wastewater treatment facilities are often protected against corrosion by applying a coating or lining material such as polyester, bitumen, epoxy, polyvinyl chloride, or polyurethane-based agents (7). These materials help to create a low-permeable, acid-resistant physical barrier between the concrete and a corrosive environment. On the other hand, coating failures in wastewater treatment facilities have been observed across the United States (8, 9). Besides, a study has described six coatings cases where blistering failed after 10 to 14 months of service in wastewater treatment plants (10). Failures such as this, when left unchecked, can result in severe structural deterioration and a significant reduction in the system’s life expectancy, as well as system interruptions and environmental impacts.

Furthermore, the inconvenience of service interruptions requiring bypass systems can add to the cost of the repairs and reapplications of coatings that will eventually be needed. In contrast, studies have reported the superiority of concrete protective liners (such as polyethylene) for long-term improvement of the resistance of concrete structures in direct contact with aggressive media at wastewater plants (11, 12). As a result, concrete protective liners are used to improve the durability of modern sewer structures (13).

Industrial Concrete Protective Liner Applications: Nuclear Power Plants

Typically, concrete containments in power plants are equipped with steel liners to provide leak tightness. These steel layers are often painted or lined to achieve corrosion resistance and decontamination. Moreover, part of the liner near the containment bottom and above the basement is often immersed in concrete to protect it from corrosive liquids. Indeed, corrosion is the primary degradation factor for the liner plate and structural steel (15). A study regarding this issue has reported the corrosion of steel liners’ outer and inner diameters for various reasons, including the presence of water or ice inside the containment and foreign materials in contact with steel (16).

The severity of this issue when it comes to nuclear power plants is represented by the impact of these local attacks on the leak potential of hazardous materials. As a result, the liner plate and any installed steel components can be lined with an appropriate membrane liner to resist the attack of the media (17). Furthermore, various lining materials, including concrete protective linings and fabric-backed applied membrane liners, are also used to protect the water systems at nuclear power plants (18).

Industrial Concrete Protective Liner Applications: Geothermal Power Plants

In geothermal power facilities with condensed steam cooling systems, microbial activity represents a critical operational concern. This steam may contain contaminants such as hydrogen sulfide, ammonia, carbon dioxide, and entrained liquids with dissolved solids (18). Most of these gases are removed from the condenser; however, some are dissolved into the cooling liquid (19). These dissolved gases, along with the dissolved solids, provide a nutrient source for the cooling water system’s bacteria.

Moreover, corrosion’s chemical treatments, cooling water cycles, and changes in thermodynamic or chemical conditions increase the potential for biofilm development. These operations result in high risks for microbiological attacks or microbiologically influenced corrosion that deteriorates concrete cooling tower basins in geothermal power plants(20). Such attacks are typically caused by sulfur-oxidizing bacteria such as Thiobacillus, which produces a corrosive agent known as sulfuric acid (H₂SO₄) that is significantly aggressive to concrete (5).

The interaction between the sulfuric acid and the cement matrix involves an acidic reaction with the calcium hydroxide (Ca(OH)₂) that forms calcium sulfate (CaSO₄) as follows:

Ca(OH)₂ + H₂SO₄ → CaSO₄ + 2H₂O

The calcium sulfate is further hydrated to form gypsum (CaSO₄∙2H₂O). At this stage, a soft white substance forms on the concrete surface (21). In the event of a continuing attack, the gypsum reacts with the calcium aluminate hydrate (C3A) to form an expansive product called ettringite ((CaO)₃∙(Al₂O₃)∙(CaSO₄)₃∙32H₂O) as follows (22):

3CaSO₄∙2H₂O + 3CaO∙Al₂O₃ + 26 H₂O → (CaO)₃∙(Al₂O₃)∙(CaSO₄)₃∙32H₂O

Once the ettringite is formed, the concrete structure undergoes extensive damage from the outer surface to the inner core due to the expansions (23). As a result, the concrete structure’s operation life is considerably reduced. To mitigate this issue, engineers and designers tend to utilize coating materials or concrete protective liners to prevent direct interaction between the concrete surface and the liquids’ biofilm (24–26).

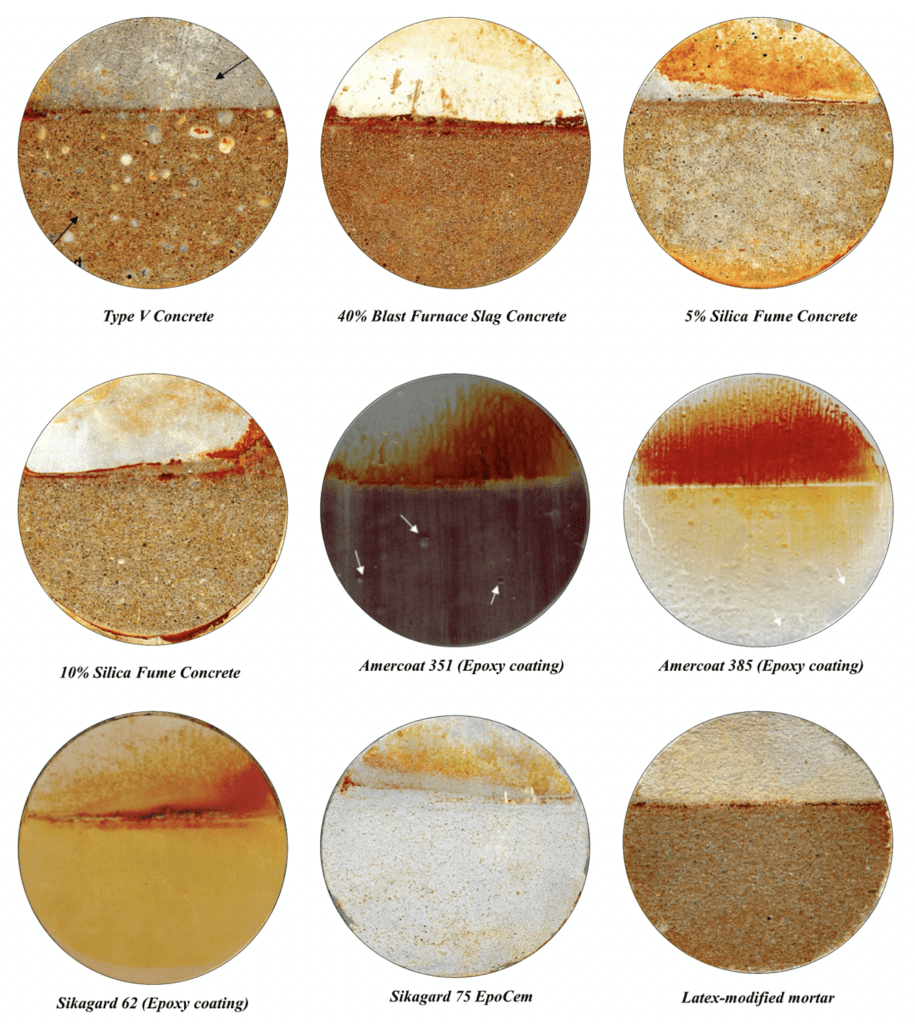

On the other hand, bacteria such as Thiobacillus produce acids that lower the pH of the liquid and thus dissolve conventional protective layers over time (27). A study regarding this topic has compared various concrete mixtures with cementitious materials such as silica fume and blast furnace slag, as well as different coating materials, including epoxy- and latex-modified mortars (20). The study results, Figure 2, showed that the uncoated concrete specimens with various cementitious materials and the coated ones had undergone different degrees of deterioration during the laboratory tests. Therefore, to overcome this issue and achieve exceptionally high resistance to aggressive media, it is essential to cover the concrete surface with a protective layer from materials of non-polar nature, such as polyethylene resins typically used in industrial concrete protective liner systems (28).

Conclusion

This article has explored various industrial concrete protective liner applications. It was shown that concrete structures are susceptible to microbial activities that induce corrosion damage. This issue can be overcome by adding a protective layer, preferably from a non-polar material such as a polyethylene concrete protective liner, to provide a barrier that prevents direct contact between aggressive media and the concrete surface. The applications of this technique are expected to increase the service life of industrial concrete containments and pipes due to the material’s exceptional corrosion resistance and high durability.
